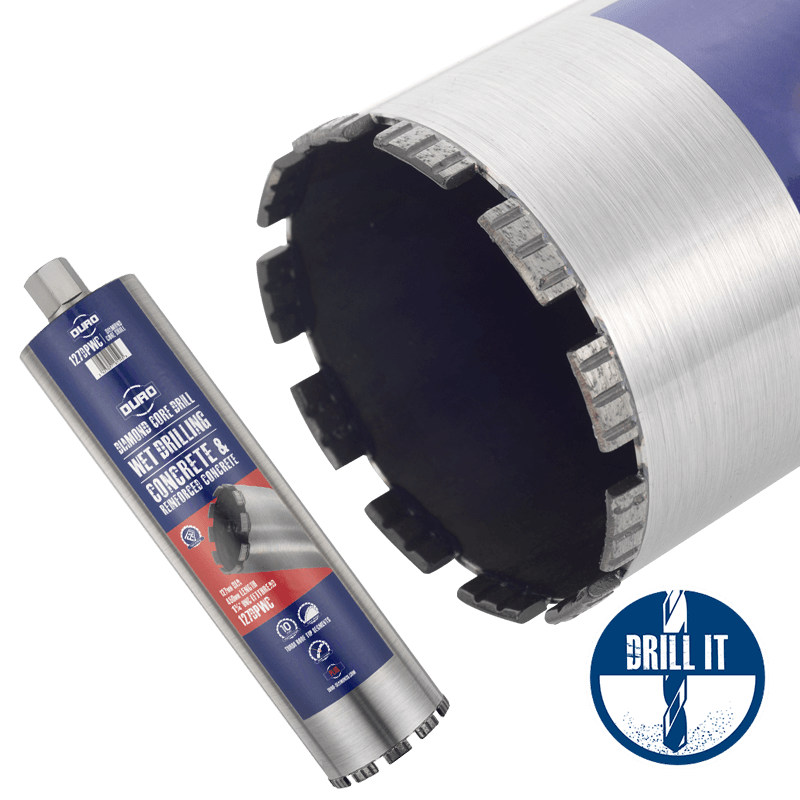

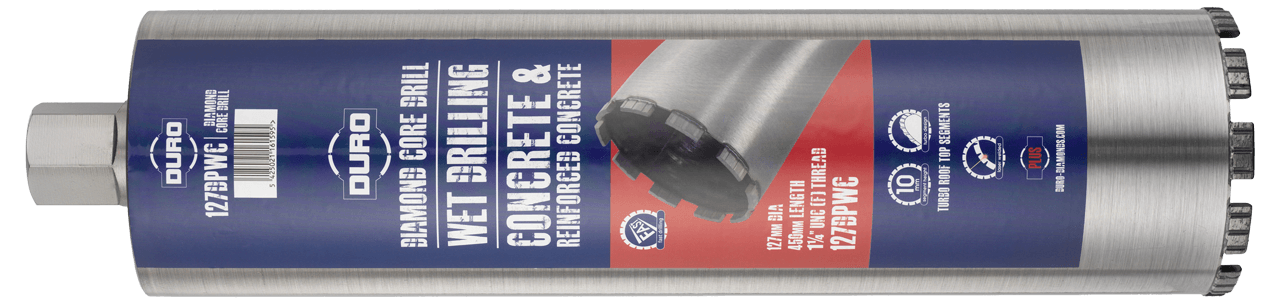

Wet Diamond Core Drill - Large Diameter Segmented

DPWC-SEGMENTED

Description

Wet Diamond Core Drill – DPWC – Large Diameter SEGMENTED | DURO PLUS

For hand held and rig mounted use.

A range of professional wet diamond cores for high speed drilling with long life.

THE MOST COMPREHENSIVE CORE DRILLING SYSTEMS AVAILABLE – PDF

CORE DRILLING GUIDE: Material Types & Speed Recommendations – pdf »

Use me for…

All types of brick including class A & B engineering. All types of concrete including light and heavily reinforced. Stone such as hard York. Occasional use in lightweight block and abrasive stone.

PROFESSIONAL QUALITY WET DIAMOND CORE DRILLS

LARGE DIAMETER SEGMENTED WET CORES
  • 10 mm Turbo / Roof top segments
  • Laser welded bonding
  • 1/2" BSP (M) x 350 mm - 35 to 52 mm
  • 11/4" UNC (F) x 450 mm - 52mm & above
  • High speed drilling
  • Excellent drilling speed & life

Sizing Options

Part numberDiameterPackagingBack EndLengthSegment / Crown
35DPWC35mmTUBE½” BSP(M)350mmSegment
38DPWC38mmTUBE½” BSP(M)350mmSegment
40DPWC40mmTUBE½” BSP(M)350mmSegment
42DPWC42mmTUBE½” BSP(M)350mmSegment
47DPWC47mmTUBE½” BSP(M)350mmSegment
52DPWC-R1/252mmTUBE½” BSP(M)350mmSegment
52DPWC52mmTUBE1¼” UNC(F)450mmSegment
57DPWC57mmTUBE1 ¼” UNC(F)450mmSegment
62DPWC62mmTUBE1¼” UNC(F)450mmSegment
67DPWC67mmTUBE1¼” UNC(F)450mmSegment
77DPWC77mmTUBE1¼” UNC(F)450mmSegment
82DPWC82mmTUBE1¼” UNC(F)450mmSegment
92DPWC92mmTUBE1¼” UNC(F)450mmSegment
102DPWC102mmTUBE1¼” UNC(F)450mmSegment
107DPWC107mmTUBE1 ¼” UNC(F)450mmSegment
112DPWC112mmTUBE1¼” UNC(F)450mmSegment
117DPWC117mmTUBE1¼” UNC(F)450mmSegment
122DPWC122mmTUBE1¼” UNC(F)450mmSegment
127DPWC127mmTUBE1¼” UNC(F)450mmSegment
132DPWC132mmTUBE1¼” UNC(F)450mmSegment
142DPWC142mmTUBE1¼” UNC(F)450mmSegment
152DPWC152mmTUBE1¼” UNC(F)450mmSegment
162DPWC162mmTUBE1¼” UNC(F)450mmSegment
172DPWC172mmTUBE1¼” UNC(F)450mmSegment
182DPWC182mmTUBE1¼” UNC(F)450mmSegment
202DPWC202mmTUBE1¼” UNC(F)450mmSegment
212DPWC212mmTUBE1¼” UNC(F)450mmSegment
225DPWC225mmTUBE1¼” UNC(F)450mmSegment
250DPWC250mmTUBE1¼” UNC(F)450mmSegment
275DPWC275mmTUBE1¼” UNC(F)450mmSegment
300DPWC300mmTUBE1¼” UNC(F)450mmSegment
350DPWC350mmTUBE1¼” UNC(F)450mmSegment
400DPWC400mmTUBE1¼” UNC(F)450mmSegment
450DPWC450mmTUBE1¼” UNC(F)450mmSegment
500DPWC500mmTUBE1¼” UNC(F)450mmSegment



The Most Comprehensive Core Drilling Systems Available Duro Yokota Ltd

THE MOST COMPREHENSIVE CORE DRILLING SYSTEMS AVAILABLE – PDF
