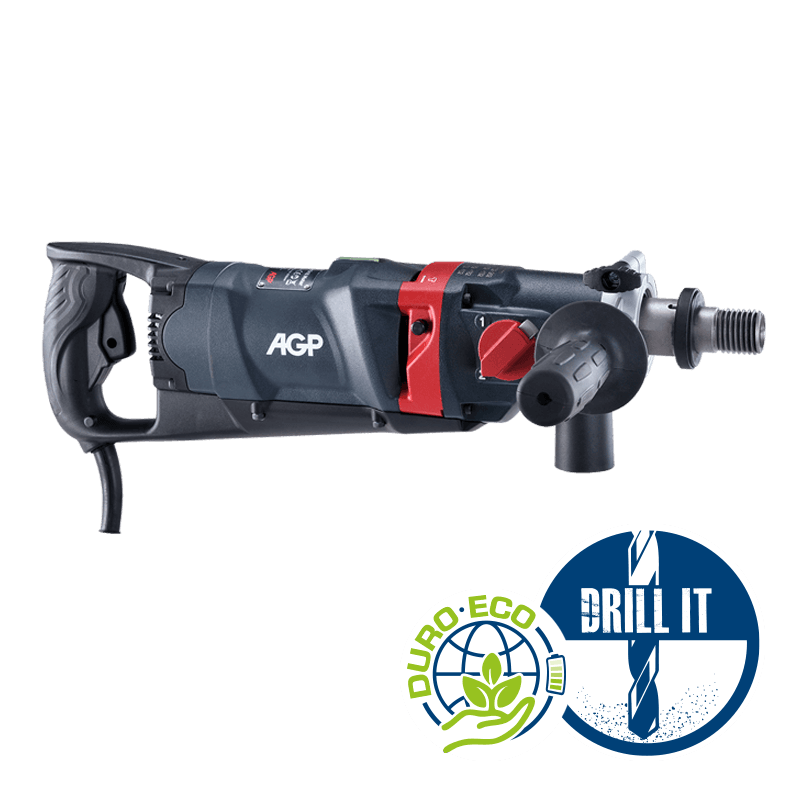

Dry Diamond Core Drill Motor

DD62 DRILL MOTORS

Description
  • For heavy duty drilling applications
  • Maximum dry core drilling in standard materials – 262mm
  • Maximum dry core drilling in reinforced concrete – 162mm (rig mounted)
  • Maximum dry core drilling in reinforced concrete – 82mm (hand held)
  • Highly efficient 2-Speed gearbox with 1700W motor & clutch
  • Through spindle dust extraction
  • Switchable soft percussion
  • Smart electronic control
  • Metal construction – optimal cooling, durability & strength
  • LED indicator for overload and overheat protection
  • Waterproof and dust-proof Hall Effect Switch
  • Built in vertical and horizontal levels for precision
  • Side handle in-line with spindle centreline for control
THE MOST COMPREHENSIVE CORE DRILLING SYSTEMS AVAILABLE – PDF
Use me for…

IDEAL FOR USE AS PART OF THE DURO YOKOTA DUST FREE CORE DRILLING SYSTEM

Find a Stockist Download Data Sheet Watch Video

Dry Diamond Core Motor

Dry drilling (reinforced concrete & brick)
  • 2-Speed Gear Box with clutch
  • Smart Electronic Control with soft-start, thermal protection, and overload protection
  • All metal construction for optimized cooling, durability, and maximum strength
  • Switchable soft percussion for optimized dry drilling
  • LED indicator for optimizing drilling efficiency with overload and overheat warning
  • Hall Effect Switch is completely waterproof and dustproof
  • Anti-seize ring to keep core bits from getting stuck on the spindle
  • Side Handle in-line with spindle centerline for best control
  • Built in vertical and horizontal levels for precision

Sizing Options

Technical DataDD62
Voltage / Frequency110-120 V~ 50-60 Hz
Power Input110 – 120V – 1700 W
Max Core Diameter262mm or 162mm depedent on material
Collar Diameter60mm
No-Load Speeds930 (#1), 1520 (#2), 4270 (#3)
Rated Load Speeds560 (#1), 910 (#2), 2560 (#3)
Weight6.4 kg
Dimensions437 mm x 115 mm x 289 mm
Vibration Level<1.71 m/s2
EAV / ELV / Exposure Points (P/H)EAV – 17 hrs 6 mins • ELV – >24H • EP/H 6
Decibel Level97.0 dB (A)
Plug Type16 amp – 3.3 KVA Transformer
Cord Length3m
Spindle2 – in – 1 <> 1¼” UNC (M), ½”BSP (F)



HEAVY DUTY APPLICATIONS – REINFORCED CONCRETE & MORE

heavy duty dust free drilling system DURO

the dust free drilling process

    • A simple process but incredibly efficient
    • The DS25M Vacuum is incredibly powerful and pulls the dust all the way from the cut

Through the solid barrel cores – through the hollow adaptor (light duty only)
Through the hollow spindle on the drill motor and into the vacuum via the hose

  • Dust free hand held and rig mounted drilling – alternatives to historical dry and wet diamond

DMC6P drill motor plastic carry case

AGP DD62 Drill Motor is supplied with a hard plastic carry case.

PAIR THE DD62 DRILL MOTOR WITH THE FOLLOWING DRILLING RIGS: B13, AS200, B14 & B16
