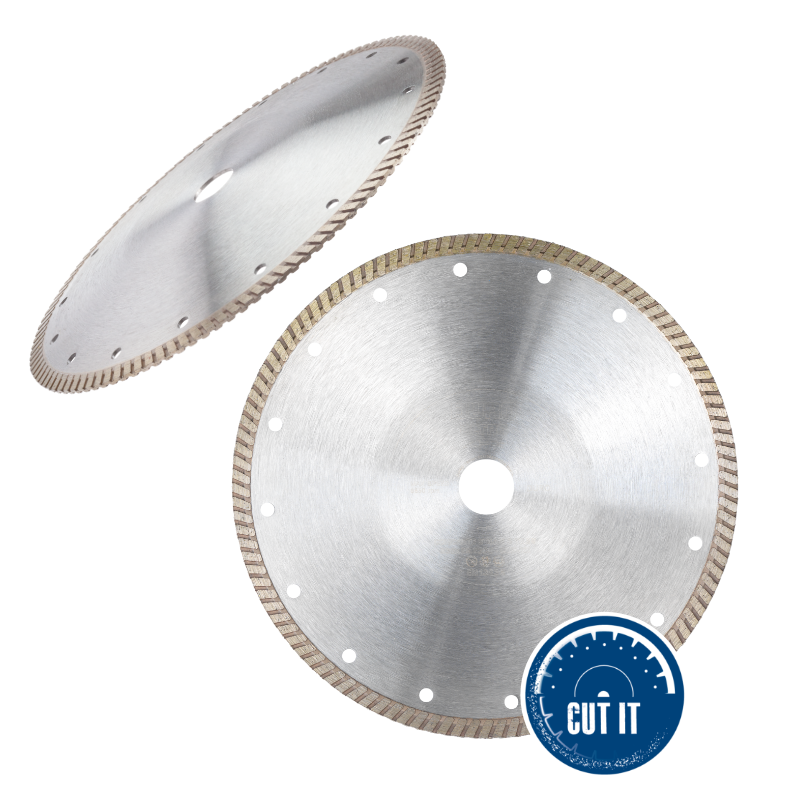

Hard Concrete / Tile / Stone Curve Cutting Diamond Blade

DU-CURVEX

Description

DU-CURVEX – cut curves! Blade is directly sintered with a high performance bond system and available in 3 diameters. A very useful blade for use specifically with angle grinders. Ideal for landscapers, tilers, builders, council departments and many more applications. Use of a dust suppression tank is recommended. The smaller the diameter of the blade – the smaller the radius of the curve possible.

How Diamond Blade Features Work – pdf »

Technical Information »

Use me for…

For cutting curves in all types of concrete, tile and hard stones. The smaller the diameter of blade selected, the smaller the radius of curve possible.

WITH: Angle Grinders  (See size chart below)

Download data sheet for full list of materials that can be cut with the DU-CURVEX blade.

TOP LEVEL DIAMOND BLADE FOR CURVE CUTTING IN HARD CONCRETE / TILE & STONE

CUT CURVES IN ALL TYPPES OF CONCRETE, TILE AND HARD STONES
  • 10mm segment height
  • Continuous rim
  • Concave body to cut curves
  • Sintered - Hot Pressed Adhesion
  • Cooling holes in 230mm only
  • Ventilated core (230mm only)
  • Excellent speed of cut & life

Sizing Options

Part numberDiameterBoreMachine
115DU-CURVEX115mm (4½”)22.23mmAngle Grinders
125DU-CURVEX125mm (5″)22.23mmAngle Grinders
230DU-CURVEX230mm (9″)22.23mmAngle Grinders

THE MULTI PURPOSE CURVE CUTTING BLADE FOR ANGLE GRINDERS

A versatile blade for use specifically with angle grinders
Ideal for landscapers, tilers, builders, council departments & many more contractors.
Smaller diameters will cut tighter curves:

Alternative Products

  • DUT Diamond Blades for porcelain tile with angle grinders & fixed machines

    DUT

    Code: Porcelain Tile with Fixed Machines Diamond Tile Blade - DUT
    View product
  • DURO PLUS Diamond Tile Blade - DPT

    DPT

    Code: DURO PLUS Diamond Tile Blade - DPT
    View product

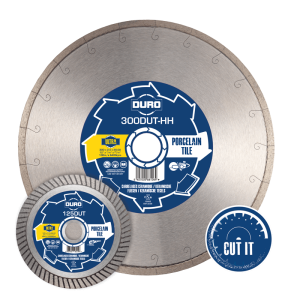

  • DUT-HH
