Duro Adamas Drill & Rig Accessories for Core Drill Motors

Sizing Options

60mm Clamp Bracket
For use with the DD62, DM52D & DMC6P hand held drill motors Enables hand held drill motors to be used with the B16, B32, S350 & S500 drill rigs Part No. 0299-0279-00164-00

60mm Clamp Bracket

For use with the DD62, DM52D & DMC6P hand held drill motors
Enables hand held drill motors to be used with the B16, B32, S350 & S500 drill rigs
Part No. 0299-0279-00164-00

60mm clamp bracket for use with Adamas DM25D & DMC6P hand held drill motors

Wet/Dry Collection Rings
For controlling dust or slurry when wet or dry drilling between 45 & 152 mm diameter when used in conjunction with vacuum unit For smaller sizes of 45-96 mm diameter – Part No. 0299-0113-00000-002 For large sizes of 93-152 mm diameter – Part No. 0299-0113-00000-001

Wet/Dry Collection Rings

For controlling dust or slurry when wet or dry drilling between 45 & 152 mm diameter when used in conjunction with vacuum unit
For smaller sizes of 45-96 mm diameter – Part No. 0299-0113-00000-002
For large sizes of 93-152 mm diameter – Part No. 0299-0113-00000-001

Wet/Dry Collection Ring Sets to suit Core drills 45mm-152mm

VP140 VACUUM PUMP
No requirement to use anchors when drilling on smooth surfaces Stand off pressure gauge Vibration absorption feet Easy access drain point 200W power input – 110 – 50-60 Hz Air flow of 30.5l/min (cfm) Max vacuum – 0.9 bar (13 psi) 6.7 kg (14.77 lbs) Weight IPX4 protection Dimensions of 310 x 238 x 250 mm Part No. VP140

VP140 VACUUM PUMP

Drill & Rig Accessories - vacuum pump

VB400 Vacuum Plate
No requirement to use anchors when drilling on smooth surfaces Quick release coupling with shut off valve Profiled base to accommodate close confined drilling Shaped base to enable stability & a compact universal fitting Designed for the B32 and other large drilling rigs Includes seal and hose connector Part No. VB400

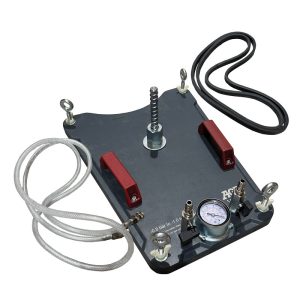

VB400 Vacuum Plate

vacuum base plate designed for the Adamas B32 and other large drilling rigs

Vacuum Seals
Replacement seal for B14 – Part No. 791521 Replacement seal for B16 – Part No. 792105

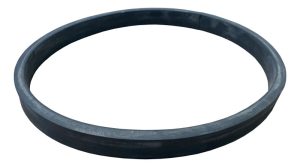

Vacuum Seals

Replacement vacuum seals for B14 & B16 Drilling Rigs

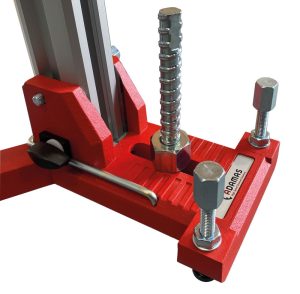

Fixing Assemblies & Anchors
Fixing assembly (M12) – DRA/S/HAD/M12 M12 Anchors – 50 pack – FIX/M12/KNOCK-IN-PK M12 Knock In Tool – FIX/M12/Setting Tool 15 mm SDS Plus Drill – 15.0×250-DP-SPLUS 40mm spacer kit – with 4 screws – 0299-0214-000-001

Fixing Assemblies & Anchors
