Floor Planer / Scarifiers

TFP200

Description

The TFP-200 range of petrol, electric & battery floor planer / scarifiers are suited to small to medium jobs with the TFP260 offering a wider drum with a 6mm depth of cut for larger more demanding applications.

The rugged steel chassis throughout the range guarantees a strong, stable machine suitable for accurate surface preparation of concrete and steel surfaces, removing coatings, levelling and texturing.

The TFP-200 is also our most popular machine for equipment hire fleets, with the TFP-260 the machine of choice for surface preparation contractors & specialised hire depots. With a versatile range of power options together with simple operation and maintenance makes them the machines of choice for a demanding industry.

Use me for…

Ideal for removal of: rust / scale / paint / adhesives, deposits from steel and concrete surfaces in preparation for re-coating and ideal for creating keyed or grooved profiles for non-slip surface applications.

VoltMax – ENGINEERED FOR CONVENIENCE, TRANSPORTABILITY & EFFICIENCY
Runtime – 35 Minutes
Charge Time from 96 Minutes

Floor Planer / Scarifiers

Accurate depth control: improves overall performance and extends cutter assembly life
  • 200 mm Floor scarifier
  • 3mm cutting depth
  • Suitable when manoeuvrability is important
  • Removal of hard coatings
  • 195 mm cutting width
  • Safety dead mans switch fitted as standard on petrol and electric models
  • Vacuum adaptor fitted as standard
  • Fully adjustable handle-bar: provides greater operator comfort
  • Choice of power source: electric, petrol or the brand new VoltMax battery option
  • Accurate depth control: improves overall performance and extends cutter assembly life

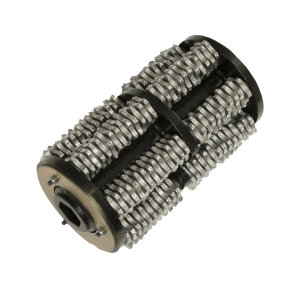

  • Drum consists of multiple high impact carbide tipped heads
  • Ideal for removal of: rust, scale, paint, adhesives
  • Ideal for removal of deposits from steel and concrete surfaces in preparation for re-coating
  • Ideal for creating keyed or grooved profiles for non-slip surface applications
  • 50 mm dust extraction ready
  • Electric Model Transformer is 5Kva

RANGE



Technical Data – TFP200-PETROL
BrandTrelawny
Weight64 kg
Working Width195 mm
Cutter Speed1833
Max Cutting Depth3 mm
Power SourcePetrol
Engine TypeHonda GX
Height900 mm
Output Power4.5HP-4.1Kw
Vibration m/s²6.9
Noise Level dB(A))95





Technical Data – TFP200-110V
BrandTrelawny
Weight72 kg
Working Width195 mm
Cutter Speed1650
Max Cutting Depth3 mm
Power SourceElectric 110V
Height900 mm
Cycle Hz50 Hz
Transformer5Kva
Output Power3HP-2.2Kw
Vibration m/s²1.25
Noise Level dB(A))95



Technical Data – TFP200-VoltMax
BrandTrelawny
Weight66 kg
Working Width195 mm
Cutter Speed2800
Max Cutting Depth3 mm
Power SourceBattery
Height900 mm
Output Power3HP-2.2Kw
Vibration m/s²4.4
Noise Level dB(A))95

TFP200-VoltMax Runtime: 35 minutes
TFP200-VoltMax Charge Time to 80%: 96 minutes

VoltMax variant supplied without battery & charger – available below.

TFP200 CHARGING
875.1466VoltMax – Cramer 8Ah 82v Battery (2 required)875.1466 voltmax-cramer battery for Trelawny TCG250 VoltMax Floor Grinders
875.1464VoltMax – Cramer 82v Dual-Port Charger875.1464 voltmax charger for Trelawny TCG250 VoltMax Floor Grinders
