Ferrous & Non-Ferrous Metals Vacuum Brazed Diamond Blade

DU-MITAL

Description

DU-MITAL vacuum brazed diamond specialist metal blades for cutting ferrous and non-ferrous metals.

  • High performance vacuum brazed diamond blade
  • Unique coated diamond grit
  • Bonded directly to the supremely thin cutting edge
  • Developed specifically to allow DU-MITAL to cut the widest range of metal materials

Specialist Blades – Material Application Chart – pdf »

Technical Information »

Use me for…

For all Metal Forms up to 40mm Thick: Flat Bar / Angle / Round / Hexagon / Sheet/Plate / Channel / Wide Flange Beam / Standard I Beam / Square & Rectangle Tubing / Pipe and Round Tubing / Tee Bar / Half Round / Half Oval / Chamfer Bar / Rebar

FERROUS: Steel / Sheet metal / Stainless steel / Rebar / Cast iron / All carbon steels / Tool steel / Alloy steels

NON-FERROUS: Alloys / Nickel alloys / Copper & Brass / Zinc & Tin / Magnesium / Lead / Titanium / Tungsten & Iridium.

WITH: Angle Grinders | Petrol Saws  (See size chart below)

Download data sheet for full list of materials that can be cut with the DU-MITAL blade.

THE TOP LEVEL VACUUM BRAZED DIAMOND BLADE FOR FERROUS & NON-FERROUS METAL CUTTING

DEVELOPED TO CUT THE WIDEST RANGE OF metals
  • UNIQUE VACUUM BRAZED PROCESS
  • CORE DIRECTLY COATED WITH SPECIAL APPLICATION DIAMONDS
  • DEVELOPED TO CUT THE WIDEST RANGE OF METALS
  • VENTILATED CORE FOR COOLING
  • KEY HOLE GULLETS FOR LESS CHIPPING & REDUCED VIBRATION

Sizing Options

Part numberDiameterBoreMachine
115DU-MITAL115mm (4½”)22.23mmAngle Grinders
125DU-MITAL125mm (5″)22.23mmAngle Grinders
230DU-MITAL230mm (9″)22.23mmAngle Grinders
300DU-MITAL300mm (12″)20.00mmHand Held Disc Cutters
350DU-MITAL350mm (14″)20.00mmHand Held Disc Cutters
350DU-MITAL-25.4350mm (14″)25.40mmHand Held Disc Cutters

DU-MITAL – THE COST EFFECTIVE, SAFE, RELIABLE SOLUTION TO CUTTING METAL WITH POWER TOOLS

  • Up to 100* x the life of abrasive cut off discs**
  • Reduction in cost per cut
  • Fewer blade changes required
  • No dust residue – solid metal disc
  • Diameter retention – no break down
  • Better control, reach and precision
  • Less spark during the cutting process
  • Cuts the widest range of metal materials
  • Safer to use than abrasive wheels
  • Range of sizes to suit all power tools
  • No breakage – solid metal disc

*115mm – 100 x life of abrasives
*125mm – 100 x life of abrasives
*230mm – 70 x life of abrasives
*300mm – 40 x life of abrasives
*350mm – 40 x life of abrasives

**Rough guide dependent on application, material and user operating technique
du-mital specialist metal cutting blades

Alternative Products

  • Duro Ultra DUA-C Diamond Blades for concrete / asphalt / metal hard materials

    DUA/C

    Code: Concrete / Asphalt / Metal / Hard Materials Diamond Blade - DUA/C
    View product
  • Steel & Inox Cutting Discs for Angle Grinders

    Code: Abrasive Cutting Discs - Steel & Inox - Angle Grinders
    View product

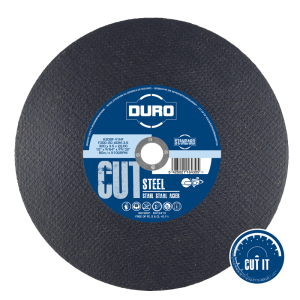

  • Steel Cutting Discs For Disc Cutters & Petrol Saws
