DURO ULTRA Diamond Edge Holesaw

DU-DHS

Description

A top line range of multi purpose vacuum brazed diamond edge holesaws with slots in the core barrel to clear waste material. Very fast cutting with long life.

Diamond edge holesaws from the Duro ULTRA range are the ideal multi purpose hole cutter for all trade professionals. The DU-DHS can be used on a huge range of materials and has long tool life thanks to its unique welded tip design.

Use of the latest brazing technology ensures that the bond between body and diamond is very strong and able to resist the excessive heat generated when drilling hard materials.

Use me for…

WET drilling – Grade 5 porcelain & quarry tiles / Granite / Travertine / Marble / Reinforced glass & cement / Stone
DRY drilling – Glass / Polymers / Fibreglass / Decking / Plywood / MDF / Plastics / Laminates / Perspex / Brick Paving / Cast Iron / Virton / Aluminium

Find a Stockist Download Data Sheet Watch Video

DIAMOND HOLESAWS

CUT A HUGE RANGE OF MATERIALS WITH ONE HOLESAW - USE WET OR DRY
  • Multi-purpose diamond holesaw
  • Superior grade diamond & vacuum brazed bond
  • Thin wall design to increase speed of cut
  • Side slots for slug ejection
  • Use with standard holesaw adaptors
  • Run dry or wet with incredible product life

RANGE

Part numberDiameterPackagingLength
19DU-DHS19mmCLAM PACK40mm
22DU-DHS22mmCLAM PACK40mm
29DU-DHS29mmCLAM PACK40mm
35DU-DHS35mmCLAM PACK40mm
38DU-DHS38mmCLAM PACK40mm
44DU-DHS44mmCLAM PACK40mm
57DU-DHS57mmCLAM PACK40mm
64DU-DHS64mmCLAM PACK40mm
68DU-DHS680mmCLAM PACK40mm
83DU-DHS83mmCLAM PACK40mm
85DU-DHS85mmCLAM PACK40mm
92DU-DHS92mmCLAM PACK40mm
102DU-DHS102mmCLAM PACK40mm
105DU-DHS105mmCLAM PACK40mm
114DU-DHS114mmCLAM PACK40mm

SEE datasheet for BEST PRACTICE GUIDELINES

ONE HOLSESAW FOR A WIDE RANGE OF MATERIALS

  • Unique tip design allows for drilling of multiple materials
  • Vacuum brazing enables extremely strong bond between body and diamond – giving resistance to excessive heat build up
  •  Thin walled for rapid penetration & heat resistance

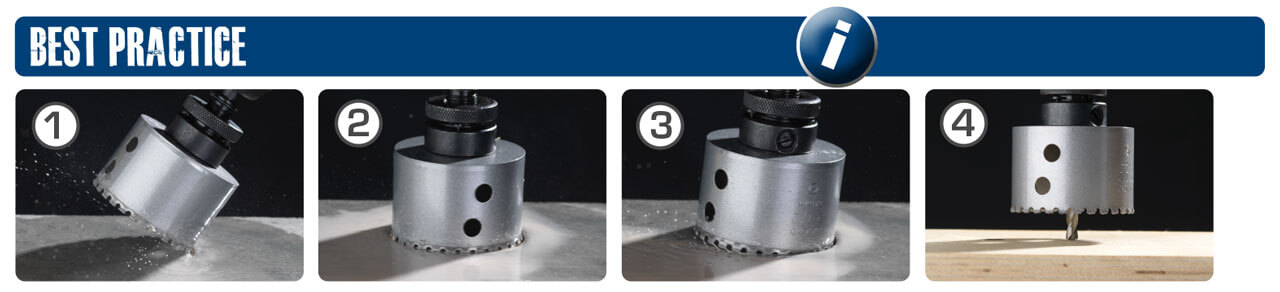

Best Practice Information for Holesaw Drilling
For materials not suited to the use of the pilot drill i.e. tile:
1. Start by drilling at 45 degrees, creating a ‘smile’
2. Raise to a vertical position to continue drilling
3. Rotate slightly to ensure easy removal of material slug

For all other materials:
4. Use the pilot drill inserted into the correct holesaw adaptor. This will penetrate the material first and then guide the holesaw to completion

Use coolant if the material requires it to reduce heat build up
