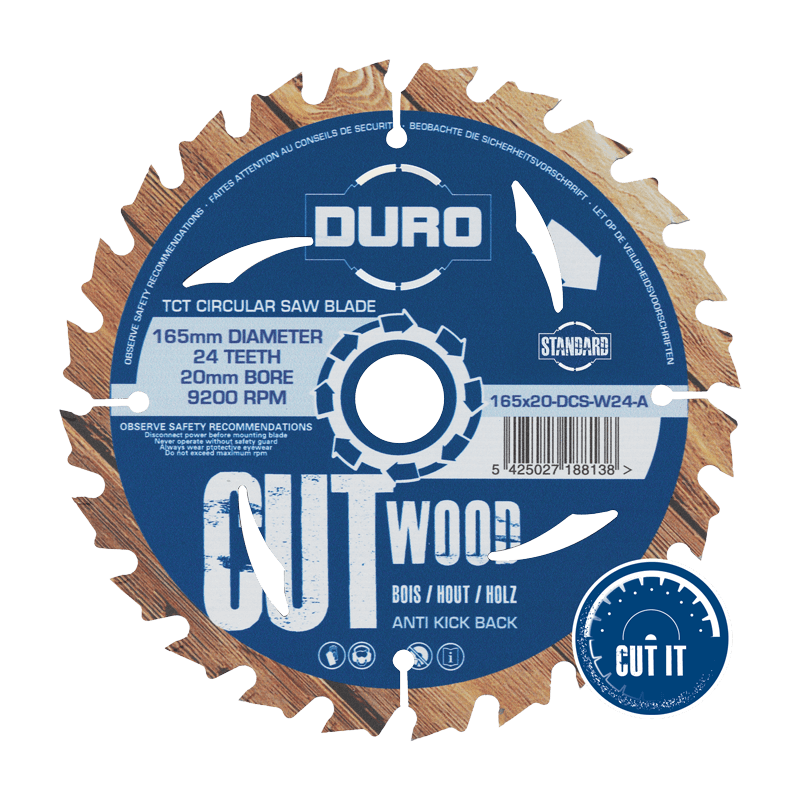

Circular Saw Blade - Wood with anti kick-back

DCS-W-A

Description

Circular Saw Blades for wood with anti-kickback protection.
TC3 Tungsten carbide tipped circular saw blades designed for a professional finish.
Keyholes to allow for expansion.
Alternative top bevel tip design for a smoother cut when crosscutting natural woods and veneered plywood.
Body hardened and tempered to retain trueness.
High grade alloy steel is precision ground to maintain flatness.

Tooth Options:
COARSE CUT – between 16 & 20 teeth for smaller diameters & 28 for blades above 190mm
MEDIUM FINISH – between 20 & 28 for smaller diameters and 40 for blades above 190mm
FINE FINISH – between 40 & 80 teeth – 40 teeth for blades up to 190mm, 60 for 210 to 260mm & 80 for larger
EXTRA FINE FINISH – between 60 & 100 teeth – 6o teeth for blades up to 190mm 80 for 210 to 260mm & 100 for larger

Each saw blade comes with free bushes (except 184 x 16.00).

See below for anti-kickback details

Use me for…

Soft wood / Hard wood / Plasterboard.
Particle board & much more.
DO NOT USE ON METAL

Find a Stockist Download Data Sheet Watch Video

STANDARD ANTI-KICKBACK QUALITY TCT WOOD CUTTING CIRCULAR SAW BLADES

SOFT AND HARD WOODS, PLASTERBOARD, FIBRE BOARD, PARTICLE BOARD AND MUCH MORE
  • Body hardened & tempered for trueness
  • Bore reamed for precise fit
  • TC3 carbide with secure silver brazing
  • Precision ground to maintain flatness
  • Alternative top bevel tip design
  • Safety Anti kick-back tip configuration

RANGE

Part numberDiameterPackagingNo. of teethBody / Tip
150×20-DCS-W24-A150 mmCLAM PACK241.4 mm/2.2 mm
150×20-DCS-W40-A150 mmCLAM PACK401.4 mm/2.2 mm
160×20-DCS-W24-A160 mmCLAM PACK241.4 mm/2.2 mm
160×20-DCS-W40-A160 mmCLAM PACK401.4 mm/2.2 mm
165×20-DCS-W24-A165 mmCLAM PACK241.4 mm/2.2 mm
165×20-DCS-W40-A165 mmCLAM PACK401.4 mm/2.2 mm
184×30-DCS-W24-A184 mmCLAM PACK241.4 mm/2.2 mm
184×30-DCS-W40-A184 mmCLAM PACK401.4 mm/2.2 mm

Alternate Top Bevel diagram

ATB Alternate top Bevel teeth

Blade teeth alternate between a right-hand & left-hand bevel. Yielding a smoother cut when crosscutting natural woodsand veneered plywood.

anti kickback

Anti kick-back technology ensures the following does NOT happen:

  • Blade being grabbed by the work-piece
  • Resulting in work-piece being thrown back toward the user
  • Especially dangerous on hand held machinery
  • The user is more open to kick back debris
    Shown here as (A), (B) & (C)

CIRCULAR SAW WOOD FINISHES

COARSE CUT – Between 16 & 20 teeth
For smaller diameters and 28 for blades above 190 mm diameter

MEDIUM FINISH – Between 20 & 28 teeth
For smaller diameters and 40 for blades above 190 mm diameter

FINE FINISH – Between 40 & 80 teeth
40 teeth for blades up to 190 mm, 60 teeth for blades at
210 – 260 mm diameter and 80 for larger diameters

EXTRA FINE FINISH – Between 60 & 100 teeth
60 teeth for blades up to 190 mm, 80 teeth for blades at 210 – 260 mm diameter and 100 for larger diameters
