Construction Materials & Metal Diamond Blade

DCM-T

Description

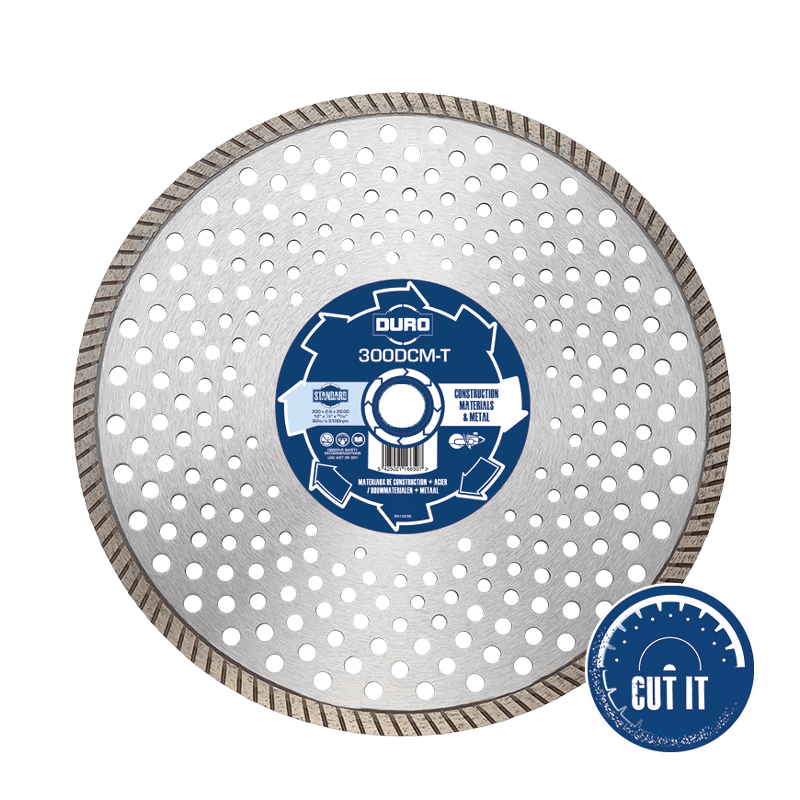

DCM-T is a turbo rim diamond blade with special cooling holes and a reinforced flange centre for increased stability, blade cooling and less chipping. Good cutting speed and life. Reinforced flange on 230 and 300mm diameters.

How Diamond Blade Features Work – pdf »

Technical Information »

Use me for…

Indian stone / Granite / House bricks / Class A Engineering bricks / Clay products / All reinforced concrete types / Ferrous metal sections up to 5mm gauge / Concrete kerbs, beams, lintels & flags.

WITH: Angle Grinders | Hand Held Disc Cutters  (See size chart below)

Download data sheet for full list of materials that can be cut with the DCM-T blade.

STANDARD QUALITY DIAMOND BLADE FOR CONSTRUCTION MATERIALS & METAL

STONE, GRANITE, BRICKS, CONCRETE, FERROUS METAL UP TO 5MM GAUGE
  • 10mm segments
  • Continuous turbo rim for less chipping, faster cutting, quicker debris clearance & blade cooling
  • Reinforced flange (230mm & 300mm)
  • Hot sintered bonding
  • Ventilated core for cooling
  • Great speed of cut & output
  • Less chipping & increased stability

Sizing Options

Part numberDiameterBoreMachine
115DCM-T115mm (4½”)22.23mmAngle Grinders
125DCM-T125mm (5″)22.23mmAngle Grinders
230DCM-T230mm (9″)22.23mmAngle Grinders
300DCM-T300mm (12″)20.00mmHand Held Disc Cutters
