Duro C16 Electric Handsaws & 400mm Diamond Blades

See www.duro-diamonds.com for diamond blades and a massive range of cutting and drilling consumables

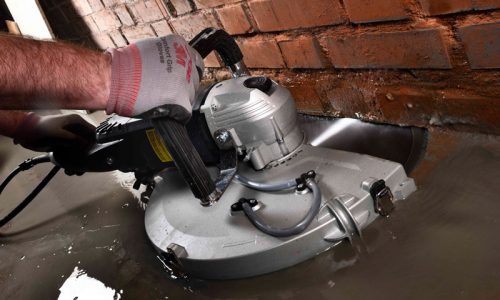

Saws that can be used in all environments and where other saws simply cannot be operated – with 400mm diamond blades.

Sizing Options

Technical Data	AGP-C16
Voltage Power	110-120V – 50 – 60Hz
Input Power	110-120V: 2700W
Blade Dia	400 mm / 16″ – 25.4 mm
Max Cutting Depth	150 mm / 6″
No-Load Speeds	3900 min
Weight	9.1 kg
Dimensions	735 x 259 x 364 mm
Maximum Vibration Level (no blade)	3.9m/s²
EAV / ELV / Exposure Points (P/H)	EAV – 3 Hrs 17 Mins • ELV – 13 Hrs 9 Mins EP/H 30
Sound Power Level (LWA)	116.0 dB (A)
Sound Pressure Level (LPA)	105.0 dB (A)
Motor Type	Brushed
Cord / Hose Length	Electrical Cord 2.5m – Direct Water Feed Hose 0.7m
Plug Type	32 amp – 5KVA Transformer (Max 20m Cable Length)

Up to 10% quieter cutting vs petrol saws
Anti-dust motor vents protected by guards
Electronic overload and thermal protection
Integral overload warning light
Chain saw style ergonomic handles increase user comfort and tool control
Nearly 20% lighter vs standard petrol saw
Smaller and easier to manoeuvre
Ideal for confined spaces
Down cut rotation – allows wet or dry debris to be channelled to the dust extraction systems
Up to 35% lower vibration levels than petrol saws allows extended single operator usage
